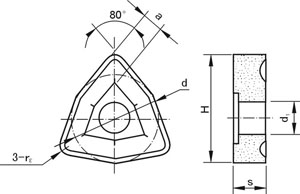

Mecánicamente Sujetos al Suelo Inserta-Type T3V
| Type | Dimensión(mm) | Aprox Unidad de Peso(g) | ||||||||
| d | s | r | a≈ | d1 | H | YG6 | YG8 | YT5 | YT14 | |
| T31005V | 10.0 | 3.5 | 0.5 | 2.4 | 4.2 | 12.6 | 4.4 | 4.3 | 3.9 | 3.5 |
| T31310V | 13.0 | 4.5 | 1.0 | 3.4 | 5.2 | 16.1 | 9.5 | 9.4 | 8.3 | 7.3 |
| T31610V | 16.0 | 5.5 | 1.0 | 4.4 | 6.2 | 20.0 | 17.7 | 17.5 | 17.3 | 17.2 |
| T31612V | 16.0 | 5.5 | 2.0 | 4.4 | 6.2 | 19.5 | 18.3 | 18.0 | 13.6 | 13.2 |
| T31920V | 19.0 | 7.0 | 2.0 | 5.4 | 7.2 | 23.3 | 31.8 | 31.5 | 24.5 | 24.0 |
