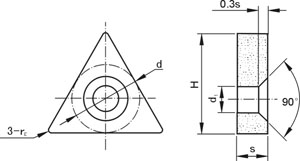

Mecánicamente Sujetos al Suelo Inserta-Type 3N
| Type | Dimensión(mm) | Aprox Unidad de Peso(g) | |||||||
| d | s | r | d1 | H | YG6 | YG8 | YT5 | YT14 | |
| 31005N | 10.0 | 4.5 | 0.5 | 4.2 | 14.5 | 7.7 | 7.5 | 6.6 | 5.9 |
| 31305N | 13.0 | 5.5 | 0.5 | 5.2 | 19.0 | 15.8 | 15.6 | 13.5 | 12.0 |
| 31605N | 16.0 | 7.0 | 0.5 | 6.2 | 23.5 | 30.9 | 30.1 | 26.9 | 23.9 |
| 31910N | 19.0 | 8.5 | 1.0 | 7.2 | 27.5 | 52.0 | 51.0 | 45.7 | 40.6 |
