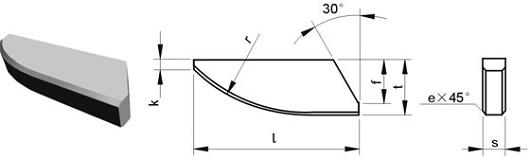

Dicas Soldadas-Tipo E4
| Tipo | Dimens?o(mm) | Aproximadamente peso unitário(g) | |||||||||
| l | t | s | f | r | k | e | YG6 | YG8 | YT5 | YT14 | |
| E415 | 15.0 | 4.0 | 2.0 | 2.5 | 15.0 | 1.5 | / | 1.4 | 1.4 | 1.2 | 1.1 |
| E418 | 18.0 | 5.0 | 2.5 | 3.5 | 20.0 | 1.5 | 0.5 | 2.9 | 2.8 | 2.2 | 2.0 |
| E420 | 20.0 | 6.0 | 3.0 | 5.0 | 25.0 | 1.5 | 0.5 | 4.1 | 4.0 | 3.4 | 3.0 |
| E425 | 25.0 | 8.0 | 3.5 | 6.0 | 25.0 | 2.0 | 0.5 | 8.0 | 7.9 | 7.0 | 6.2 |
| E430 | 30.0 | 10.0 | 4.0 | 8.0 | 30.0 | 2.0 | 0.5 | 13.1 | 12.9 | 11.4 | 10.3 |
