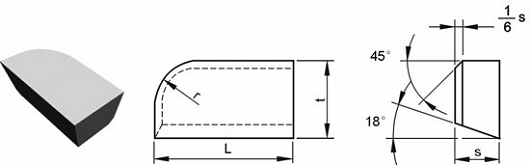

Dicas Soldadas-Tipo B
| Tipo | Dimens?o (mm) | |||
| L | t | s | r | |
| B5 | 5.0 | 3.0 | 2.0 | 2.0 |
| B6 | 6.0 | 4.0 | 2.5 | 2.5 |
| B8 | 8.0 | 5.0 | 3.0 | 3.0 |
| B10 | 10.0 | 6.0 | 4.0 | 4.0 |
| B12 | 12.0 | 8.0 | 5.0 | 5.0 |
| B16 | 16.0 | 10.0 | 6.0 | 6.0 |
| B20 | 20.0 | 12.0 | 7.0 | 7.0 |
| B25 | 25.0 | 14.0 | 8.0 | 8.0 |
| B32 | 32.0 | 18.0 | 10.0 | 10.0 |
| B40 | 40.0 | 22.0 | 12.0 | 12.0 |
| B50 | 50.0 | 25.0 | 14.0 | 14.0 |
