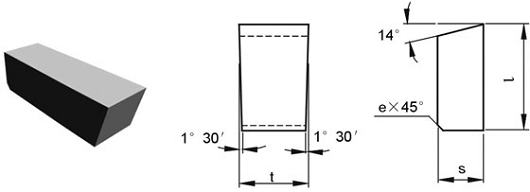

Dicas Soldadas-Tipo C3
| Tipo | Dimens?o(mm) | Aproximadamente peso unitário(g) | ||||||
| l | t | s | e | YG6 | YG8 | YT5 | YT14 | |
| C303 | 12.0 | 3.5 | 3.0 | / | 1.8 | 1.7 | 1.5 | 1.4 |
| C304 | 14.0 | 4.5 | 4.0 | 0.8 | 3.4 | 3.3 | 2.9 | 2.7 |
| C305 | 17.0 | 5.5 | 5.0 | 0.8 | 6.4 | 6.2 | 5.4 | 5.0 |
| C306 | 17.0 | 6.5 | 6.0 | 0.8 | 9.1 | 8.8 | 7.6 | 7.0 |
| C308 | 20.0 | 8.5 | 7.0 | 0.8 | 15.9 | 15.6 | 13.7 | 12.3 |
| C310 | 22.0 | 10.5 | 8.0 | 0.8 | 24.4 | 24.0 | 21.7 | 20.0 |
| C312 | 22.0 | 12.5 | 10.0 | 0.8 | 36.7 | 36.0 | 32.0 | 29.8 |
| C316 | 25.0 | 16.5 | 11.0 | 1.2 | 61.2 | 60.2 | 54.0 | 49.5 |
