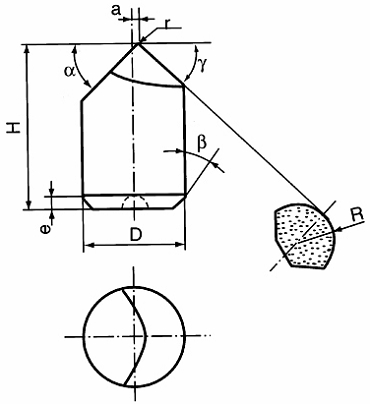

Carboneto de Tungstênio Dicas-Tipo M27
| Tipo | Dimens?o | Nota | ||||||||
| D | H | R | α | β | γ | r | a | e | ||
| M27-81001 | 11.5 | 25.0 | 6.0 | 58o | 45o | 50o | / | / | 1.0 | G81201 |
| M2712 | 12.5 | 9.0 | 48o | 32o | / | 2.3 | G82681 | |||
| M2712A | 10.0 | 47o | 23o | 45o | / | 1.3 | 2.0 | G5466 | ||
| M2713 | 13.0 | 24.0 | 53o | 45o | 50o | 1.0 | 1.0 | 1.0 | G85033 | |
| M2715 | 15.0 | 22.0 | 11.0 | 45o | 30o | 45o | / | / | 2.6 | G6597 |
| M2715A | 22.6 | 10.0 | 41o30' | 39o | 51o | 1.0 | -1.1 | 2.4 | G5465 | |
| M2717 | 17.8 | 20.0 | 14.4 | 37o30' | 45o | 67o30' | / | / | 1.5 | G8154 |
