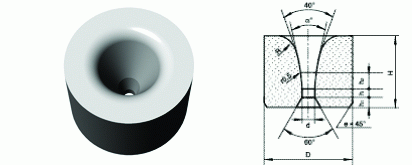

Carboneto de Tungstênio Dies Tipo 12
| Tipo | Dimens?es | |||||||
| D | H | d | h | h1 | h2 | R | αo | |
| 12- | 8.00 | 6.00 | 0.40~0.80 | 0.30~0.60 | 1.00 | 1.40~1.80 | 2.00 | 10 |
| 13.00 | 8.00 | 0.40~2.30 | 0.30~1.00 | 1.50 | 2.00~3.00 | |||
| 16.00 | 10.00 | 08.0~2.80 | 0.50~1.20 | 2.00 | 2.50~3.50 | 3.00 | 12 | |
| 20.00 | 12.00 | 2.30~3.80 | 1.00~1.40 | 2.50 | 4.50~5.00 | 14 | ||
| 22.00 | 14.00 | 4.20~5.70 | 1.60~2.00 | 3.00 | 5.50~7.00 | 16 | ||
| 26.00 | 16.00 | 6.40~8.00 | 2.00 | 3.50 | 7.50 | 3.50 | ||
