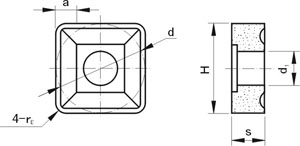

Mecanicamente Presas Inserts-Tipo 4V
| Tipo | Dimens?o(mm) | Aproximadamente peso unitário(g) | ||||||||
| d | s | r | a≈ | d1 | H | YG6 | YG8 | YT5 | YT14 | |
| 41005V | 10.0 | 3.5 | 0.5 | 24. | 4.2 | 10.0 | 4.4 | 4.3 | 3.6 | 3.2 |
| 41310V | 13.0 | 4.5 | 1.0 | 3.4 | 5.2 | 13.0 | 9.3 | 9.1 | 7.8 | 6.9 |
| 41610V | 16.0 | 5.5 | 1.0 | 4.4 | 6.2 | 16.0 | 17.3 | 17.0 | 15.1 | 13.4 |
| 41620V | 16.0 | 5.5 | 2.0 | 4.4 | 6.2 | 16.0 | 16.9 | 16.6 | 14.5 | 12.9 |
| 41910V | 19.0 | 7.0 | 1.0 | 5.4 | 7.2 | 19.0 | 31.0 | 30.5 | 26.9 | 23.9 |
| 41920V | 19.0 | 7.0 | 2.0 | 5.4 | 7.2 | 19.0 | 30.5 | 30.1 | 26.7 | 23.9 |
